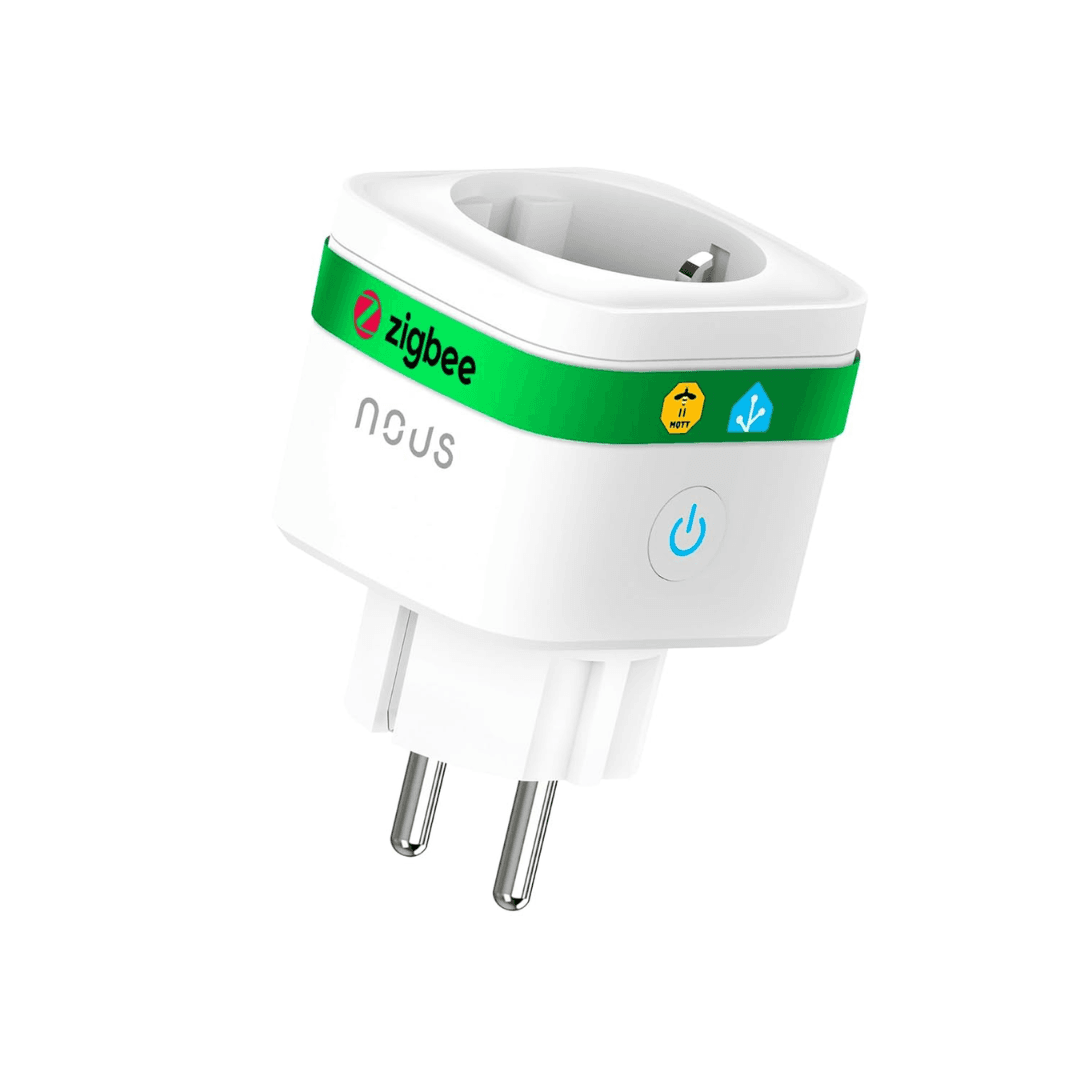

NOUS A7Z – Zigbee Smart Plug with Energy Monitoring
NOUS A7Z is a Zigbee 3.0 smart plug designed for users who want remote control, automation, and energy monitoring for connected electrical devices. NOUS A7Z connects to a compatible Zigbee network and provides real-time power consumption data while supporting smart home automations and scheduling.
Key Takeaways
- Main Benefit: Smart appliance control with built-in energy monitoring.
- Primary Use Case: Automating and monitoring household electrical devices.
- Connectivity: Zigbee 3.0 wireless protocol.
- Compatibility: Works with Zigbee gateways and supported smart home platforms.
- Energy Monitoring: Measures power, voltage, current, and energy consumption.
Key Benefits
✔ Monitor electricity usage directly from your smart home platform
✔ Control appliances remotely through Zigbee automation
✔ Create schedules and routines for everyday devices
✔ Acts as a Zigbee router to strengthen mesh network coverage
✔ Supports high-power household appliances up to 16A
What Is NOUS A7Z?
NOUS A7Z is a Zigbee 3.0 smart plug that enables remote control and energy monitoring for connected electrical devices. Designed for integration into Zigbee smart home ecosystems, the plug allows users to automate appliances, create schedules, and monitor power consumption from a single interface.
The device is suitable for controlling lamps, coffee machines, fans, televisions, chargers, and many other household appliances. Through a compatible Zigbee gateway, users can view energy statistics and automate appliance operation based on schedules, scenes, or sensor triggers.
Because the device is a mains-powered Zigbee device, it also participates in the Zigbee mesh network as a router. This helps improve communication reliability and extend coverage for nearby Zigbee devices.
Its compact design allows installation in standard wall outlets while providing smart control capabilities without modifying the connected appliance.
Overview & Benefits
Monitor Energy Consumption
This plug provides detailed energy monitoring information including power usage, voltage, current, and accumulated energy consumption. This information helps users understand how connected devices impact household electricity usage.
Automate Household Appliances
By integrating with Zigbee-based automation systems, this plug can automatically switch connected devices on or off based on schedules, scenes, occupancy events, or other automation triggers.
Improve Zigbee Network Coverage
As a permanently powered Zigbee device, it functions as a Zigbee router. This allows the device to relay Zigbee traffic and strengthen overall network performance.
Technical Specifications
| Specification | Value |
|---|---|
| Product Model | NOUS A7Z |
| Product Type | Zigbee Smart Plug |
| Wireless Protocol | Zigbee 3.0 |
| Energy Monitoring | Yes |
| Operating Voltage | 230V AC, 50Hz |
| Maximum Load | 16A |
| Maximum Power | 3680W |
| Standby Consumption | Less than 0.5W |
| Communication Range | Up to 30m indoors* |
| Operating Temperature | 0°C to 40°C |
| Protection Rating | IP20 |
| Material | Flame-retardant PC |
| Color | White |
| Certifications | CE, RoHS |
*Actual range depends on building materials and Zigbee mesh coverage.
What's Included with NOUS A7Z?
- NOUS A7Z Zigbee Smart Plug
- User Documentation
How Do You Use NOUS A7Z?
Step 1
Plug the device into a compatible wall outlet.
Step 2
Pair the Zigbee plug with a compatible Zigbee gateway or coordinator.
Step 3
Configure schedules, automations, and energy monitoring through your smart home platform.
Compatibility
| Platform / System | Compatible |
|---|---|
| Zigbee 3.0 Gateways | Yes |
| Zigbee2MQTT | Yes |
| Home Assistant (via Zigbee Coordinator) | Yes |
| ZHA | Yes |
| Amazon Alexa* | Yes |
| Google Home* | Yes |
| Tuya Zigbee Gateways | Yes |
| Smart Life Ecosystem | Yes |
| Wi-Fi Direct Control | No |
| Bluetooth Pairing | No |
*Voice assistant support depends on the connected Zigbee gateway.
FAQs
Who Should Buy NOUS A7Z?
The device is suitable for homeowners, renters, smart home enthusiasts, and users seeking energy monitoring capabilities. It is particularly useful for those building Zigbee-based smart homes using Home Assistant, Zigbee2MQTT, ZHA, or compatible Zigbee hubs.
What Is NOUS A7Z?
It is a Zigbee 3.0 smart plug with energy monitoring that allows users to remotely control connected appliances and track electricity consumption through a compatible Zigbee network.
Who Should Buy NOUS A7Z?
This Zigbee plug is designed for users who want appliance automation, energy monitoring, scheduling, and integration with Zigbee smart home ecosystems.
How Does NOUS A7Z Work?
The Zigbee plug communicates using Zigbee 3.0 and connects to a compatible Zigbee gateway or coordinator. Once connected, users can control devices, create automations, and monitor energy usage.
What's Included with NOUS A7Z?
The device includes the smart plug and accompanying user documentation for installation and setup.
Does NOUS A7Z Require a Zigbee Hub?
Yes. The Zigbee smart plug requires a compatible Zigbee coordinator, gateway, or hub to access smart control, automation, and monitoring features.
Can NOUS A7Z Monitor Energy Consumption?
Yes. The device provides energy monitoring capabilities including power, voltage, current, and energy usage reporting through supported Zigbee platforms.
Which Smart Home Platforms Support NOUS A7Z?
The Zigbee plug supports Zigbee2MQTT, ZHA, Home Assistant with a Zigbee coordinator, Smart Life compatible gateways, and other Zigbee 3.0 platforms.
Can NOUS A7Z Strengthen a Zigbee Network?
Yes. Because it is a mains-powered Zigbee device, it operates as a Zigbee router and can help extend Zigbee mesh network coverage.
