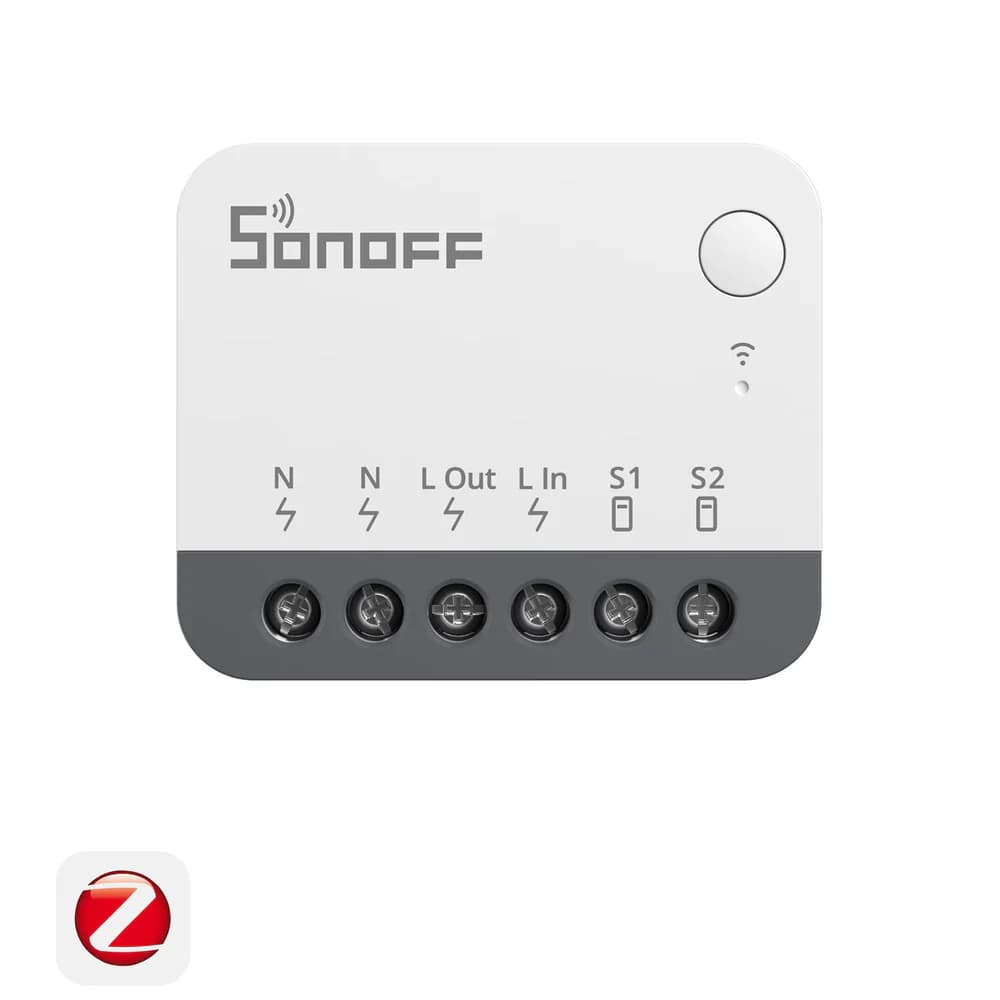

SONOFF ZBMINIR2 – Extreme Zigbee Smart Switch (With Neutral)

Buy SONOFF ZBMINIR2 to add reliable Zigbee smart control behind your existing wall switches.
This ultra-compact Zigbee smart switch fits easily into standard EU-type mounting boxes and also acts as a Zigbee router, improving network coverage while enabling advanced smart lighting control.

---

Key Benefits

• Ultra-compact design for tight switch boxes

• Zigbee 3.0 smart switch with router capability

• Supports smart bulbs with Detach Mode

• Extended signal range with Turbo Mode

• Compatible with Home Assistant and Zigbee2MQTT

---

What Is the SONOFF ZBMINIR2?

The SONOFF ZBMINIR2 is a compact Zigbee smart switch module designed to be installed behind traditional wall switches.
It allows you to control lighting and electrical loads through Zigbee while keeping your existing switch layout unchanged.

---

Common Use Cases

• Convert traditional wall switches into smart switches

• Control smart bulbs without cutting power

• Extend Zigbee network coverage

• Build reliable Zigbee automations with Home Assistant

---

Compact Design & Installation

• Designed for EU-type, 86-type, and 120-type mounting boxes

• Fits easily behind existing wall switches

• No changes required to switch appearance

Physical Dimensions

• Size: 39.5 × 33 × 16.8 mm

• Weight: 26.7 g

---

Electrical & Technical Specifications

• Input Voltage: 100–240V~ 50/60Hz

• Maximum Current: 10A (resistive load)

• Maximum Load: 2400W @ 240V

• Wireless Protocol: Zigbee 3.0

• Wiring Requirement: Neutral wire required

---

Zigbee Router & Signal Performance

Zigbee Signal Booster

• Functions as a Zigbee router

• Supports up to 64 Zigbee end devices

• Extends Zigbee network coverage

Turbo Mode

• Enhanced signal strength

• Communication distance up to 200 m in open environments

• Significantly wider coverage than standard Zigbee switches

---

Smart Bulb Support (Detach Mode)

Detach Mode allows the smart bulb to stay powered even when the physical switch is turned off.

Benefits:

• Prevents smart bulbs from going offline

• Maintains app and automation control

• Ideal for Zigbee and Wi-Fi smart bulbs

---

External Switch Compatibility

Supports multiple external switch types:

• Rocker switches

• SPDT switches

• Momentary switches

• Door contact switches

This allows flexible wiring options for different installations.

---

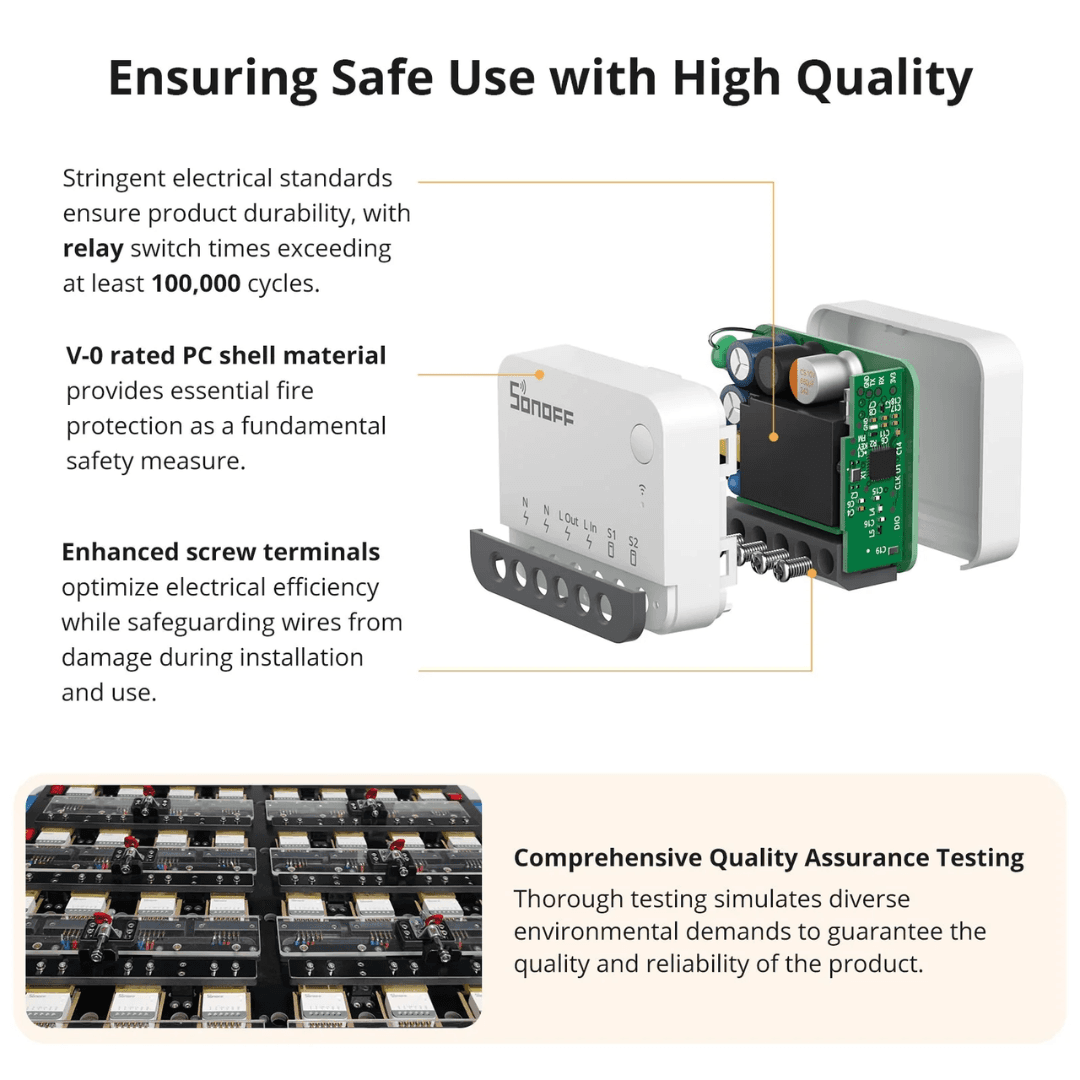

Safety & Reliability Features

• Delay Power-On function

• Protects connected loads from high inrush current

• Helps prevent damage after power outages

---

Platform & Hub Compatibility

Smart Home Platforms

• Home Assistant (ZHA)

• Home Assistant (Zigbee2MQTT)

Zigbee Hubs

• SONOFF iHost

• SONOFF ZBBridge-U

Matter Ecosystem

• Can be exposed to Apple Home via a compatible Matter Bridge

---

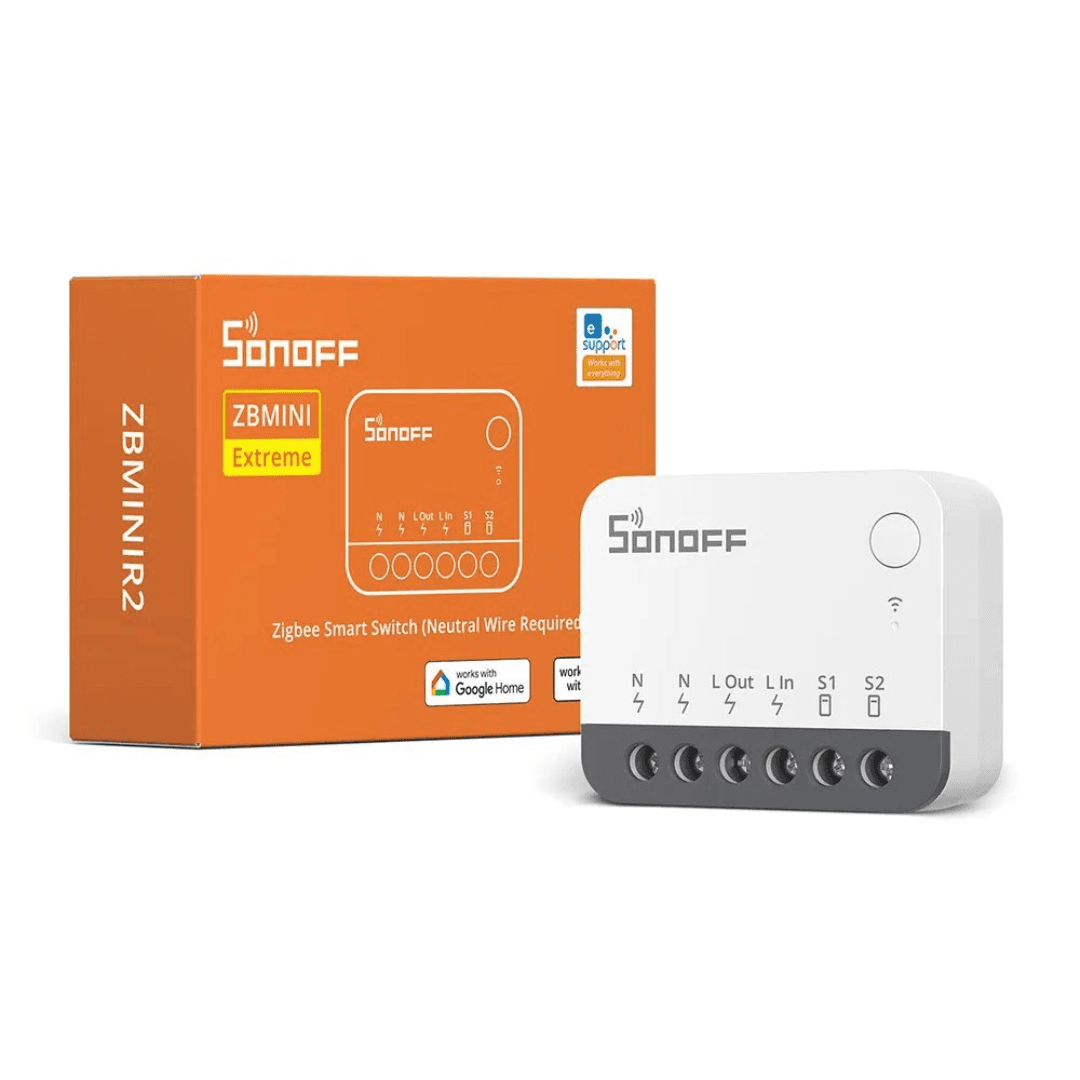

What’s Included

• SONOFF ZBMINIR2 Zigbee Smart Switch

• User documentation

---

Frequently Asked Questions

Does this require a neutral wire?

Yes. A neutral wire is required for installation.

Can this act as a Zigbee repeater?

Yes. It functions as a Zigbee router and extends network coverage.

Can I use this with smart bulbs?

Yes. Detach Mode keeps smart bulbs powered at all times.

Does it work with Home Assistant?

Yes. It works with Home Assistant via ZHA and Zigbee2MQTT.

---

Why Buy SONOFF ZBMINIR2?

• Extremely compact Zigbee smart switch

• Improves Zigbee network stability

• Ideal for smart bulb installations

• Designed for modern Zigbee smart homes

---

Summary

The SONOFF ZBMINIR2 is a powerful, compact Zigbee smart switch that combines reliable switching, smart bulb support, and Zigbee routing in one device.
It is an excellent choice for users building scalable Zigbee smart homes with Home Assistant.

---

Buy SONOFF ZBMINIR2 Now

Upgrade your wall switches with reliable Zigbee smart control.
