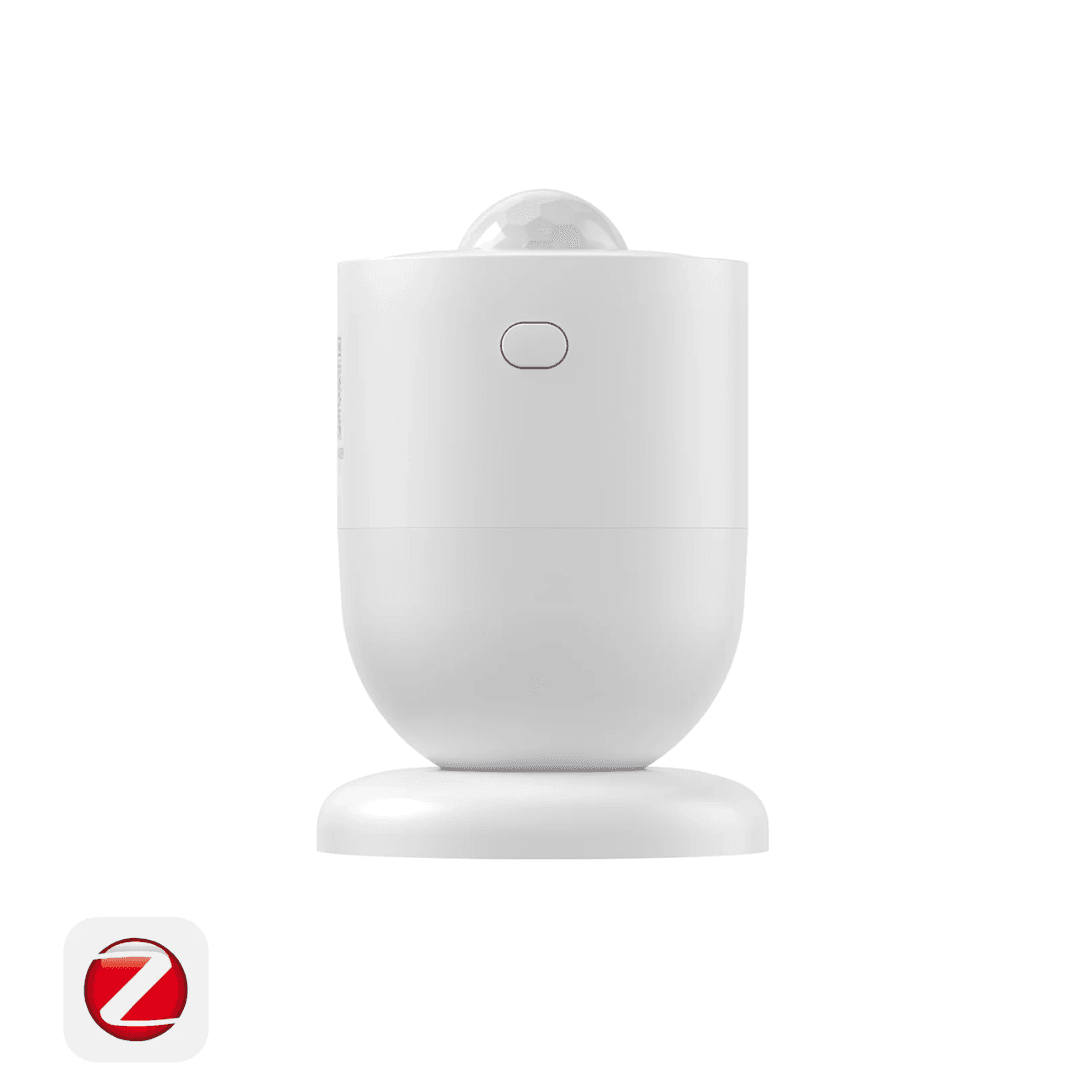

Sonoff SNZB-03
What is SONOFF SNZB-03?
SONOFF SNZB-03 is a Zigbee motion sensor designed to detect movement and trigger smart home automations. It uses Zigbee wireless communication to send motion alerts or activate smart scenes through a Zigbee hub. The device operates using a CR2450 3V battery and detects motion within a range of up to 6 meters with a 110° detection angle.
Key Benefits
- Detects motion instantly to trigger smart home automations.
- Wide 110° detection angle with up to 6 m detection range.
- Battery-powered design with CR2450 3V battery.
- Supports smart scene automation through a Zigbee hub.
Why Use SONOFF SNZB-03?
It is designed to detect human motion and trigger automations or alerts in a smart home environment. When movement is detected, the sensor can activate smart scenes such as turning on lights or sending notifications through a connected Zigbee gateway.
The sensor uses the Zigbee wireless protocol (IEEE 802.15.4) to communicate with compatible Zigbee hubs. This allows the device to operate as part of a smart home automation system without relying on direct Wi-Fi connectivity.
It is compact and easy to install using adhesive mounting, allowing placement in hallways, entrances, or other areas where motion detection is needed. The device can trigger automations such as lighting control or security alerts when motion is detected.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Product Name |
SONOFF SNZB-03 |
|
Device Type |
Zigbee Motion Sensor |
|
Wireless Protocol |
Zigbee (IEEE 802.15.4) |
|
Detection Range |
Up to 6 m |
|
Detection Angle |
110° |
|
Power Supply |
CR2450 3 V battery |
|
Material |
PC |
|
Working Temperature |
−10 °C to 40 °C |
|
Dimensions |
Approx. 40 × 35 × 28 mm |
Compatibility
It works with Zigbee smart home systems that support the Zigbee protocol.
Typical compatibility includes:
-
SONOFF Zigbee Bridge
-
Zigbee hubs compatible with Zigbee sensors
-
Smart home automation systems connected through a Zigbee gateway
The sensor communicates with the hub via Zigbee and can trigger smart scenes such as lighting control or notifications.
How to Set Up SONOFF SNZB-03
-
Install the CR2450 battery and power on the sensor.
-
Pair it with a compatible Zigbee hub or Zigbee bridge.
-
Configure automations or alerts through the connected smart home platform.
FAQs
What is SONOFF SNZB-03?
A Zigbee motion sensor that detects movement and sends alerts or triggers smart home automations through a Zigbee hub.
What battery does the SONOFF SNZB-03 use?
SONOFF SNZB-03 is powered by a CR2450 3 V battery, which supplies energy for motion detection and wireless communication.
What is the detection range of the SONOFF SNZB-03?
The SONOFF SNZB-03 can detect motion at distances of up to 6 meters and has a 110-degree detection angle.
Does It require a hub?
Yes. It communicates using Zigbee and requires a Zigbee hub or Zigbee bridge to connect with smart home systems and automation platforms.
Why Buy SONOFF SNZB-03?
- Reliable Zigbee motion detection for smart home automation.
- Wide motion detection coverage for rooms and hallways.
- Battery-powered wireless design for flexible installation.
- Compatible with Zigbee-based smart home ecosystems.
