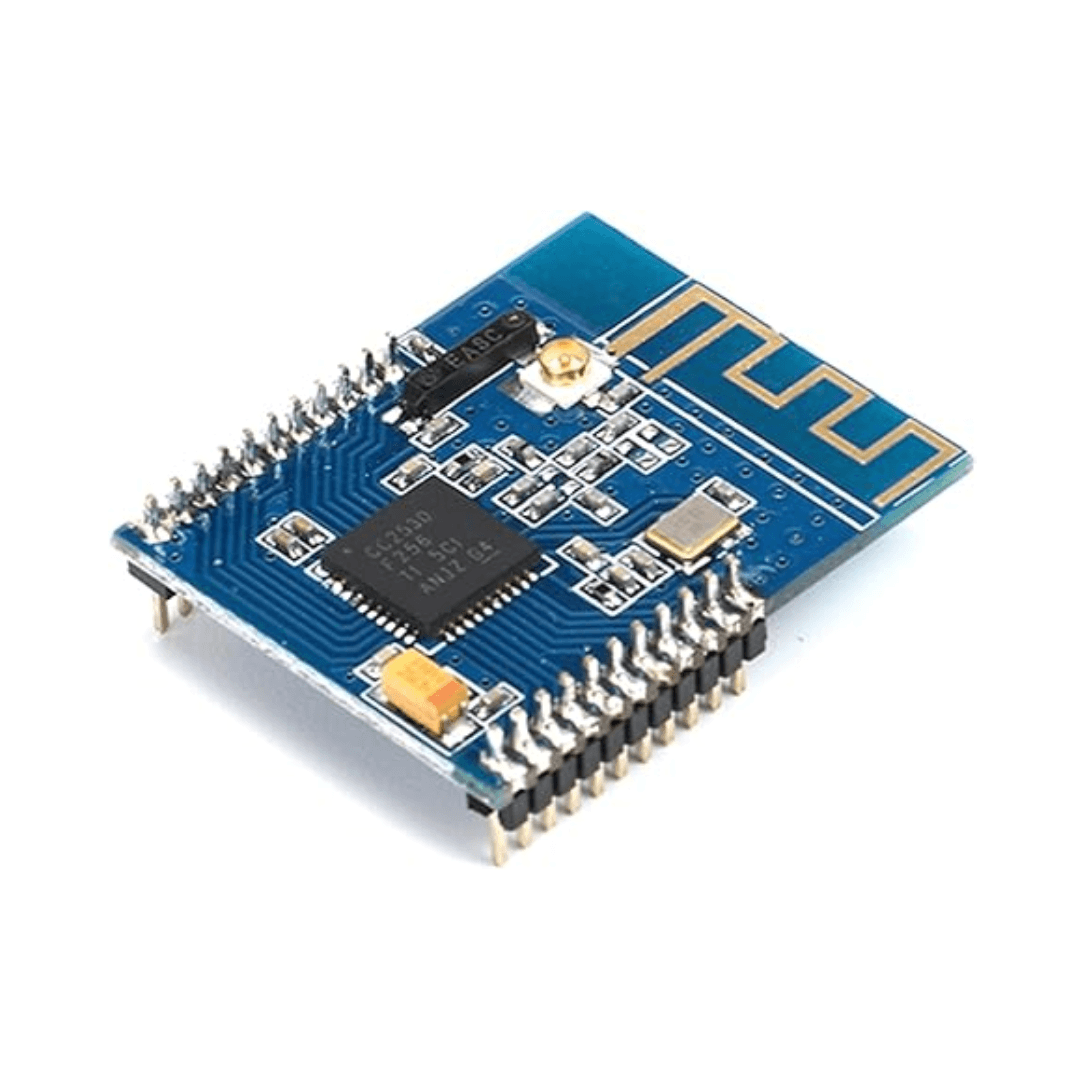

CC2530 Zigbee Module is a Zigbee development and routing module designed for DIY smart home users, Home Assistant enthusiasts, and embedded developers.

The CC2530 Zigbee Module solves weak Zigbee mesh coverage and low-cost Zigbee experimentation by combining a Texas Instruments CC2530 chip with IEEE 802.15.4 wireless communication.

This device supports Zigbee routing, Zigbee Network Processor (ZNP) firmware, and external antenna configurations for improved signal performance.

Key Takeaways

• Supports Zigbee routing and DIY smart home development
• Ideal for Home Assistant and Zigbee2MQTT experiments
• External antenna models improve mesh coverage significantly
• Compatible with Zigbee router firmware and ZNP firmware
• Requires CC Debugger for firmware flashing
• 14-day return policy for unused products in original condition

Key Benefits

• Improve Zigbee coverage in difficult areas
• Build custom Zigbee routers and sensors
• Supports Zigbee2MQTT and Home Assistant projects
• Low-cost Zigbee experimentation under $10

What Is the CC2530 Zigbee Module?

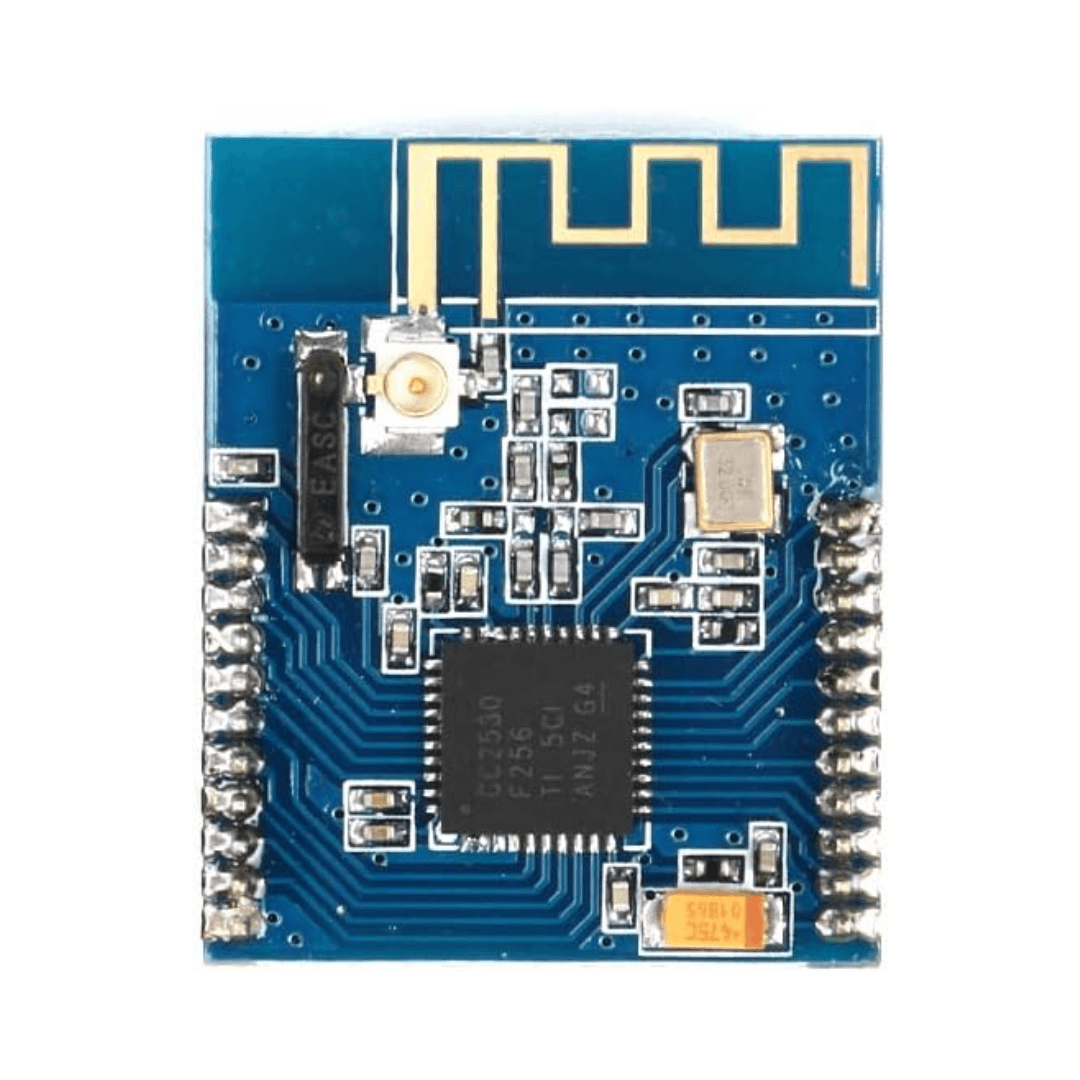

CC2530 Zigbee Module is a low-power wireless development module based on the Texas Instruments CC2530 System-on-Chip (SoC). The CC2530 combines a 2.4 GHz IEEE 802.15.4 radio transceiver with an enhanced 8051 microcontroller.

The CC2530 Zigbee Module is commonly used for:

• DIY Zigbee routers
• Zigbee repeaters
• Arduino Zigbee projects
• Zigbee sensor development
• Home Assistant Zigbee experiments
• Zigbee2MQTT router setups

Many smart home enthusiasts still use the CC2530 Zigbee Module in 2026 because the module remains inexpensive, power efficient, and widely supported by the Zigbee DIY community.

Why Choose the CC2530 Zigbee Module?

Expand Weak Zigbee Networks

The CC2530 Zigbee Module can significantly improve Zigbee signal coverage when flashed as a Zigbee router. External antenna versions often perform better than built-in antennas found in many smart plugs and low-cost Zigbee devices.

I have personally used CC2530 routers to improve Zigbee coverage in detached garages, upstairs rooms, and outdoor sensor areas where weak mesh performance caused delays and device drops.

Ideal for DIY Smart Home Projects

The CC2530 Zigbee Module is one of the most beginner-friendly Zigbee development platforms available.

The module works well for:

• Custom automation projects
• Embedded Zigbee development
• Learning Zigbee networking
• Building battery-powered sensors
• UART-based Zigbee communication

The large DIY community around the CC2530 also means setup guides, firmware files, and troubleshooting resources are easy to find.

Excellent Value for Zigbee Learning

Modern Zigbee coordinators are more powerful, but few devices offer the same low-cost entry point for experimentation.

The CC2530 Zigbee Module remains one of the easiest ways to:

• Learn Zigbee networking
• Understand Zigbee routing
• Experiment with Zigbee firmware
• Test custom Zigbee applications

Key Features

Texas Instruments CC2530 Chipset

The CC2530 chipset combines wireless communication and microcontroller processing into a single low-power chip.

IEEE 802.15.4 Wireless Support

The module supports IEEE 802.15.4 wireless communication at 2.4 GHz for Zigbee networking.

External Antenna Support

Selected versions include an external antenna connector for stronger signal transmission and improved mesh performance.

Zigbee Router Firmware Support

The device can run Zigbee router firmware to improve network coverage.

Zigbee Network Processor (ZNP) Support

The module supports ZNP firmware for UART communication with Arduino, Raspberry Pi, and ESP-based systems.

Product Specifications

Specification	Details
Chipset	Texas Instruments CC2530
Wireless Standard	IEEE 802.15.4
Frequency	2.4 GHz
MCU	Enhanced 8051
Flash Options	32KB / 64KB / 128KB / 256KB
RAM	8KB
Receiver Sensitivity	-97 dBm

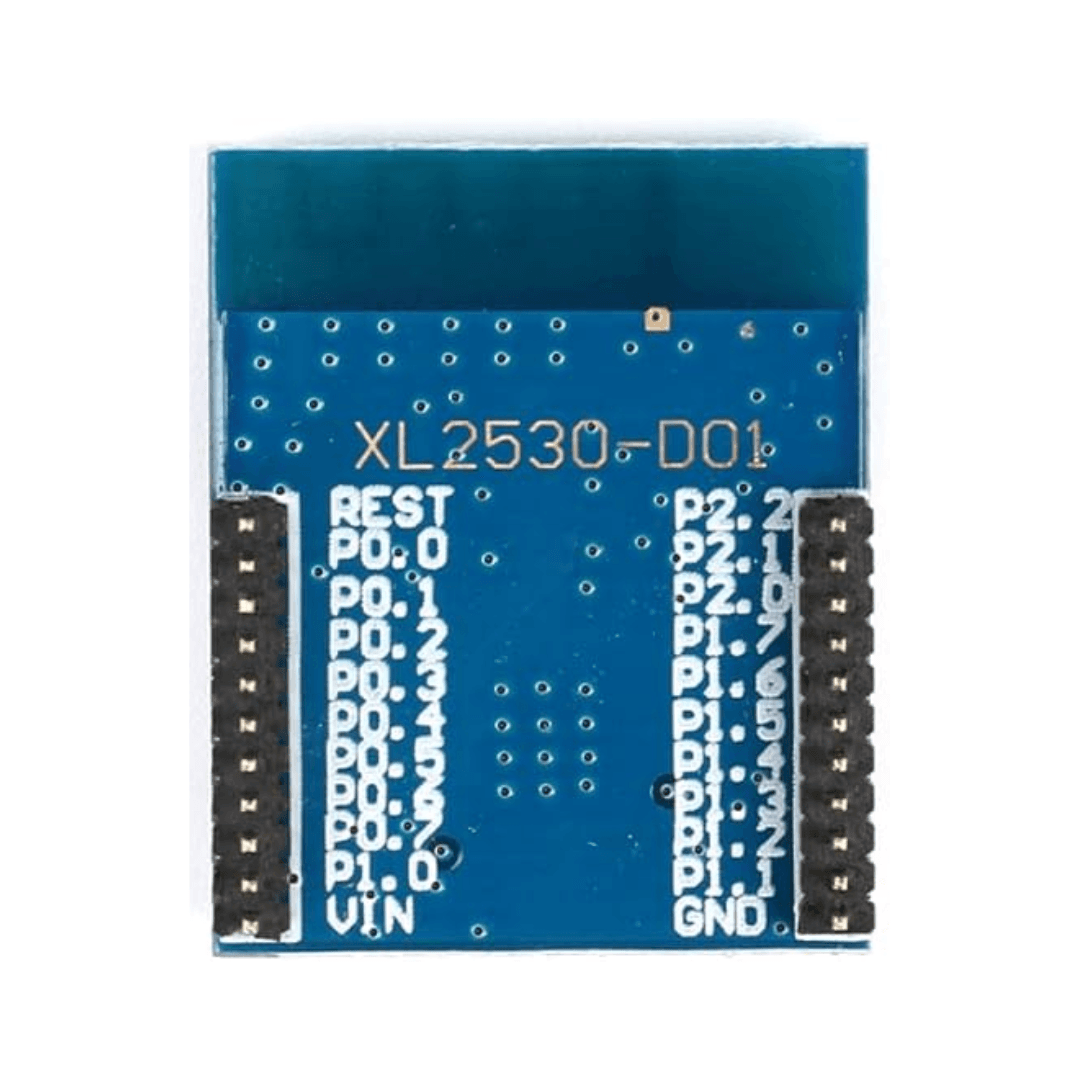

GPIO Pins	21
ADC	12-bit
UART Interfaces	2
Sleep Current	1 µA
Communication	UART
Firmware Support	Zigbee Router / ZNP
Antenna	PCB or External Antenna Variant

How to Use the CC2530 Zigbee Module

Step 1 — Flash Firmware

Connect the device

Step 2 — Connect to Your System

Connect the device to Arduino, Raspberry Pi, or power source.

Step 3 — Join Your Zigbee Network

Pair the device with Zigbee2MQTT or Home Assistant.

Compatibility Information

Platform / System	Compatible
Home Assistant	Yes
Zigbee2MQTT	Yes
Arduino UART Projects	Yes
Raspberry Pi	Yes
ESP8266 / ESP32	Yes
Zigbee Router Firmware	Yes
Zigbee Coordinator Firmware	Limited
Zigbee 3.0	Yes (CC2530F256 only)

CC2530 vs Modern Zigbee Coordinators

Feature	CC2530	Modern CC2652P Coordinators
Cost	Very Low	Moderate
DIY Development	Excellent	Excellent
Large Networks	Limited	Excellent
Router Performance	Good	Excellent
Zigbee2MQTT Support	Yes	Yes
External Antenna Support	Yes	Yes
Recommended Device Count	Under 40 Devices	200+ Devices

Specifications based on publicly available manufacturer documentation and community-supported firmware projects as of May 2026.

Pros and Cons

Pros

• Extremely affordable
• Massive DIY community support
• Great for Zigbee routers
• Works with Arduino and Raspberry Pi
• External antenna models improve coverage
• Low power consumption

Cons

• Older 8051 architecture
• Limited memory compared to newer chips
• Requires CC Debugger for flashing
• Not ideal for large Zigbee networks
• Older development tools can feel outdated

Use Cases for the CC2530 Zigbee Module

DIY Zigbee Router

One of the best uses for the device is creating dedicated Zigbee routers for weak signal areas.

Arduino Zigbee Projects

The module works well with Arduino-based automation systems using UART communication.

Home Assistant Experiments

This device is popular among Home Assistant users experimenting with Zigbee networking.

Embedded Zigbee Development

Developers often use the CC2530 Zigbee Module for low-power wireless sensor designs.

Troubleshooting Table

Problem	Possible Cause	Fix
Firmware flashing fails	Incorrect wiring	Verify DD, DC, RESET, GND connections
Weak Zigbee range	Internal PCB antenna	Use external antenna version
Zigbee device drops	Weak mesh network	Add powered Zigbee routers
Module not detected	Incorrect serial settings	Verify UART baud rate and firmware

Why Smart Home Enthusiasts Still Use the CC2530 in 2026

Even though newer Zigbee chips exist, the Zigbee Module remains popular because it is reliable, inexpensive, and easy to experiment with.

For hobbyists and developers, the module continues to offer excellent value for:

• Zigbee mesh learning
• Router development
• Custom automation projects
• Low-cost prototyping

Modern coordinators may outperform the CC2530, but the module still earns a place in many DIY smart home labs.

Frequently Asked Questions

What is the CC2530 Zigbee Module?

It is a low-power IEEE 802.15.4 wireless development board designed for Zigbee communication, routing, and DIY smart home projects.

Who should buy the CC2530 Zigbee Module?

This Module is best for DIY smart home users, Home Assistant enthusiasts, Arduino developers, and users learning Zigbee networking.

How does the CC2530 Zigbee Module work?

The Zigbee Module works by combining an 8051 microcontroller with a 2.4 GHz Zigbee radio transceiver for wireless mesh communication.

What’s included with the CC2530 Zigbee Module?

This Zigbee Module packages typically include the module board and antenna configuration.

Is the CC2530 Zigbee Module compatible with Home Assistant?

Yes. The Zigbee Module works with Home Assistant through Zigbee2MQTT and compatible Zigbee router firmware.

How do I set up the CC2530 Zigbee Module?

Set up the Zigbee Module by flashing firmware using a CC Debugger, connecting the module to your system, and pairing the module with your Zigbee network.

What are the CC2530 Zigbee Module specifications?

This Zigbee Module specifications include IEEE 802.15.4 wireless communication, 2.4 GHz frequency support, 8KB RAM, and up to 256KB flash memory.
