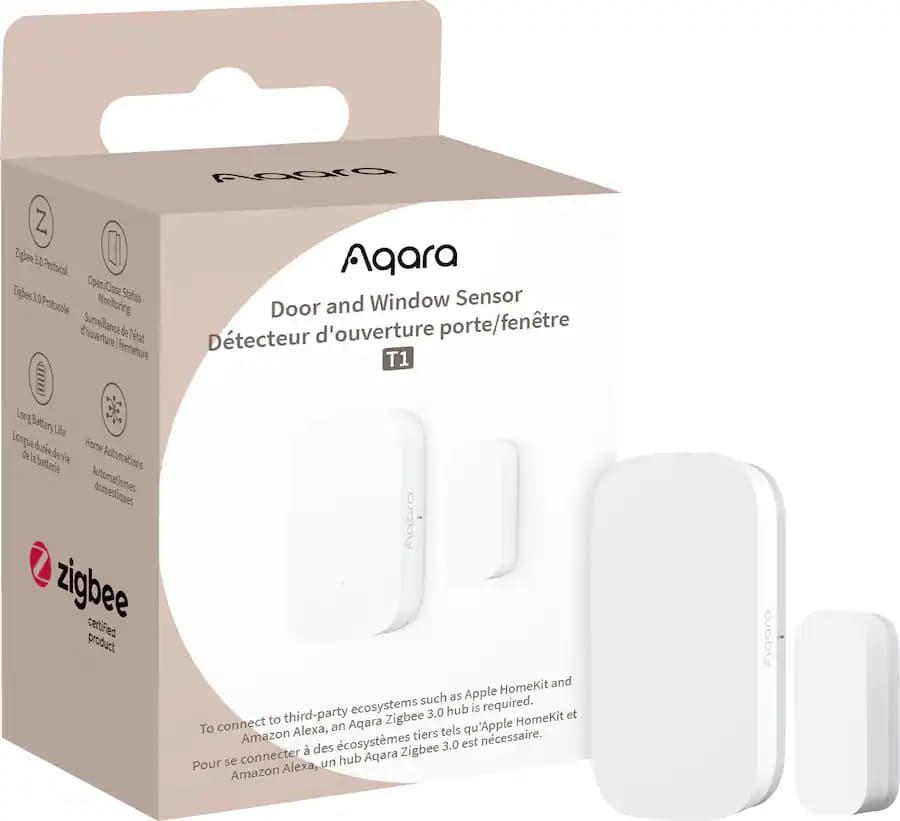

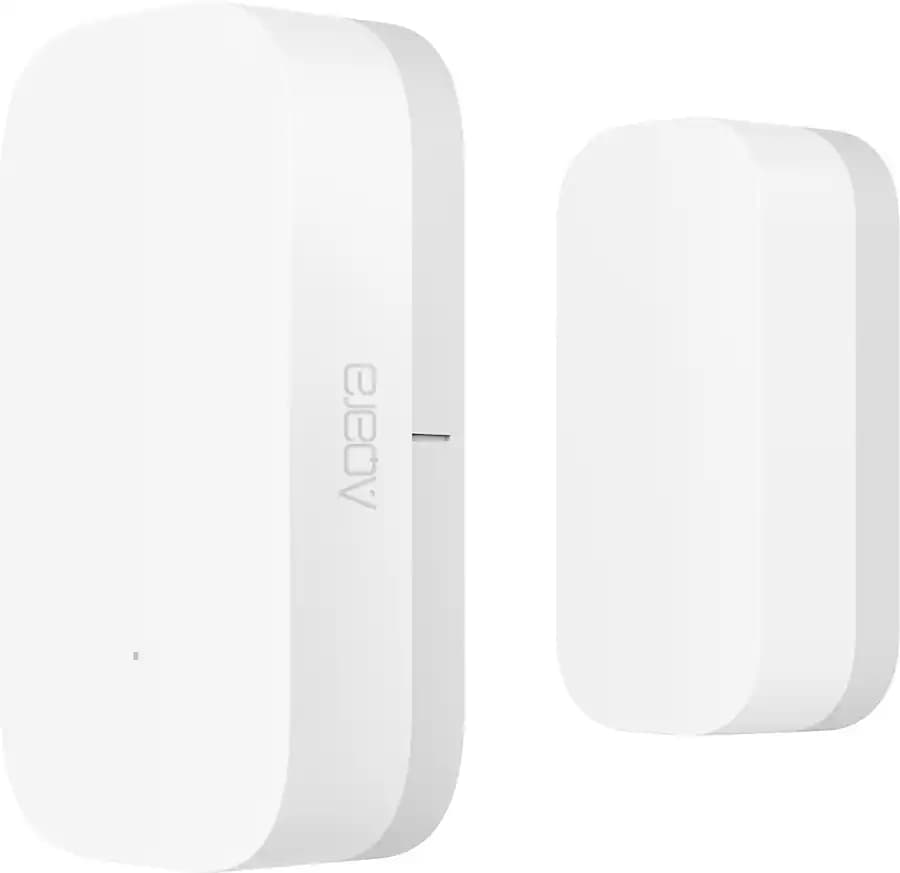

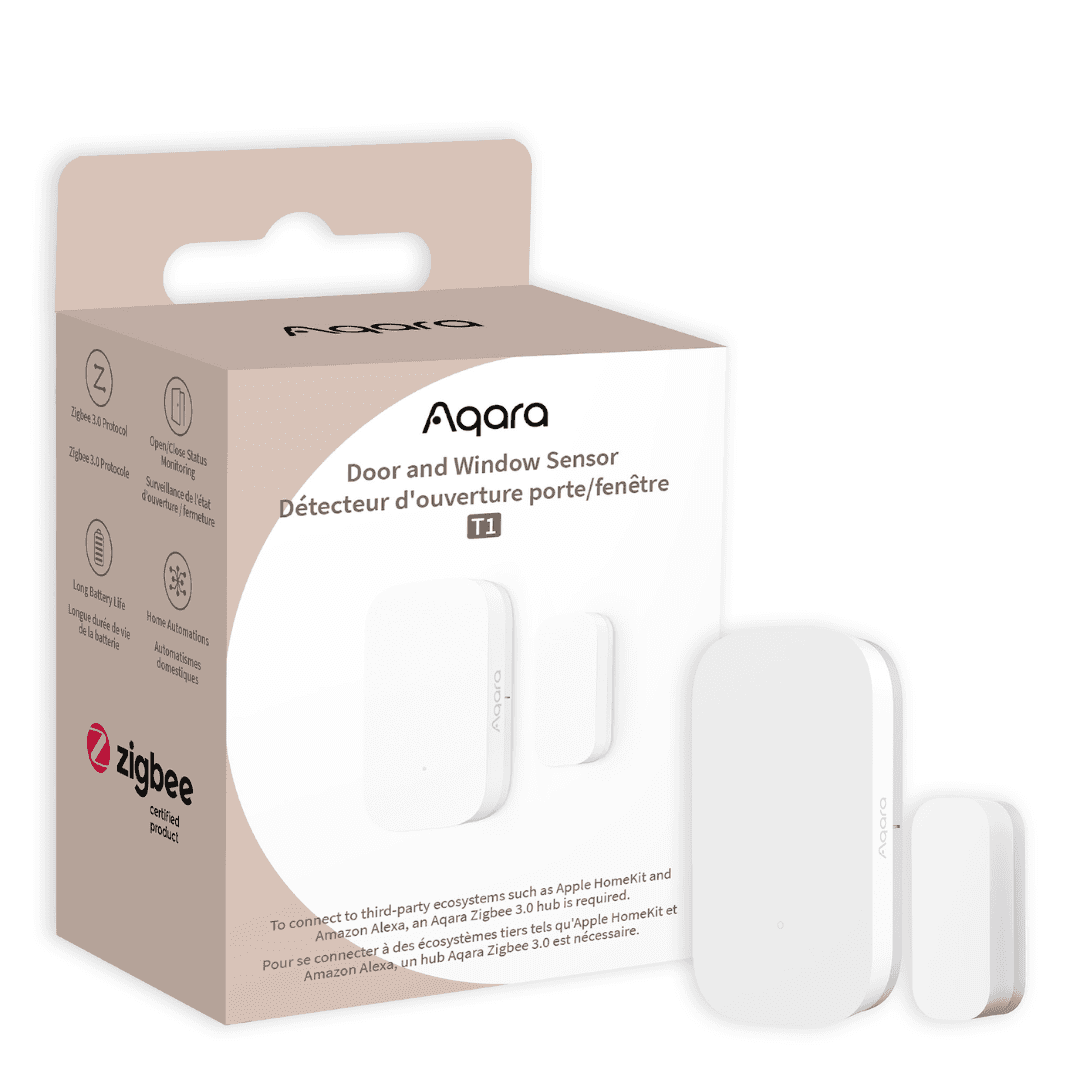

Aqara Door & Window Sensor (T1) – Zigbee Smart Contact Sensor
What is Aqara Door & Window Sensor (T1)?
Aqara Door & Window Sensor (T1) is a Zigbee 3.0 smart contact sensor designed to detect whether a door or window is open or closed. Aqara Door & Window Sensor T1 works by monitoring the distance between the sensor unit and a magnet, allowing it to detect opening or closing events in real time.
Key Benefits
- Detects door and window open/close status in real time.
- Use Zigbee 3.0 for reliable smart home connectivity.
- Enables smart home automation and security alerts.
- Compact wireless sensor with long battery life.
Why Use Aqara Door & Window Sensor T1?
Aqara Door & Window Sensor T1 is designed to monitor the open or closed status of doors, windows, drawers, or cabinets. The sensor works by detecting the distance between the main sensor unit and the magnet, which changes when a door or window is opened.

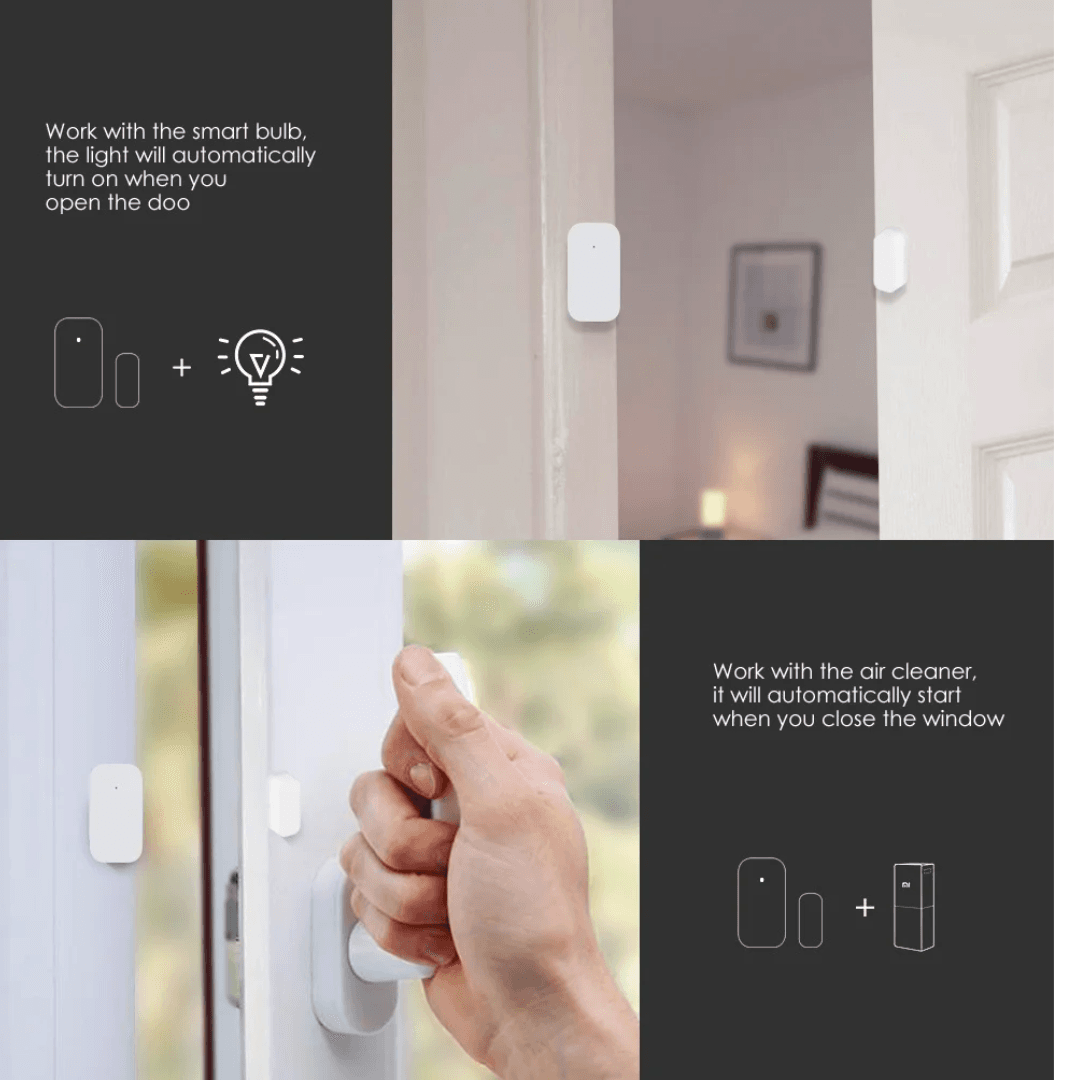

Using Zigbee 3.0 wireless connectivity, the sensor communicates with an Aqara hub to report status changes instantly. This allows the sensor to trigger automations such as turning on lights, activating alarms, or sending notifications when a door or window is opened.
The sensor is battery powered and designed for easy installation. With adhesive mounting and low energy consumption, the Aqara Door & Window Sensor T1 can operate for over two years on a single battery under normal usage.
Technical Specifications
|
Specification |
Details |
|
Product Name |
Aqara Door & Window Sensor T1 |
|
Model |
DW-S03D |
|
Device Type |
Zigbee Door and Window Sensor |
|
Wireless Protocol |
Zigbee 3.0 |
|
Battery |
CR1632 |
|
Maximum Detection Distance |
22 mm |
|
Dimensions |
41 × 22 × 11 mm |
|
Operating Temperature |
-10°C to 45°C |
|
Operating Humidity |
0 – 95% RH (non-condensing) |
Compatibility
Aqara Door & Window Sensor T1 works with the following platforms when connected through an Aqara hub:
-
Aqara Home ecosystem
-
Apple Home (HomeKit)
-
Amazon Alexa
-
Google Assistant
-
IFTTT
The sensor requires a compatible Aqara hub to communicate with smart home platforms and automation systems.
How to Set Up Aqara Door & Window Sensor T1

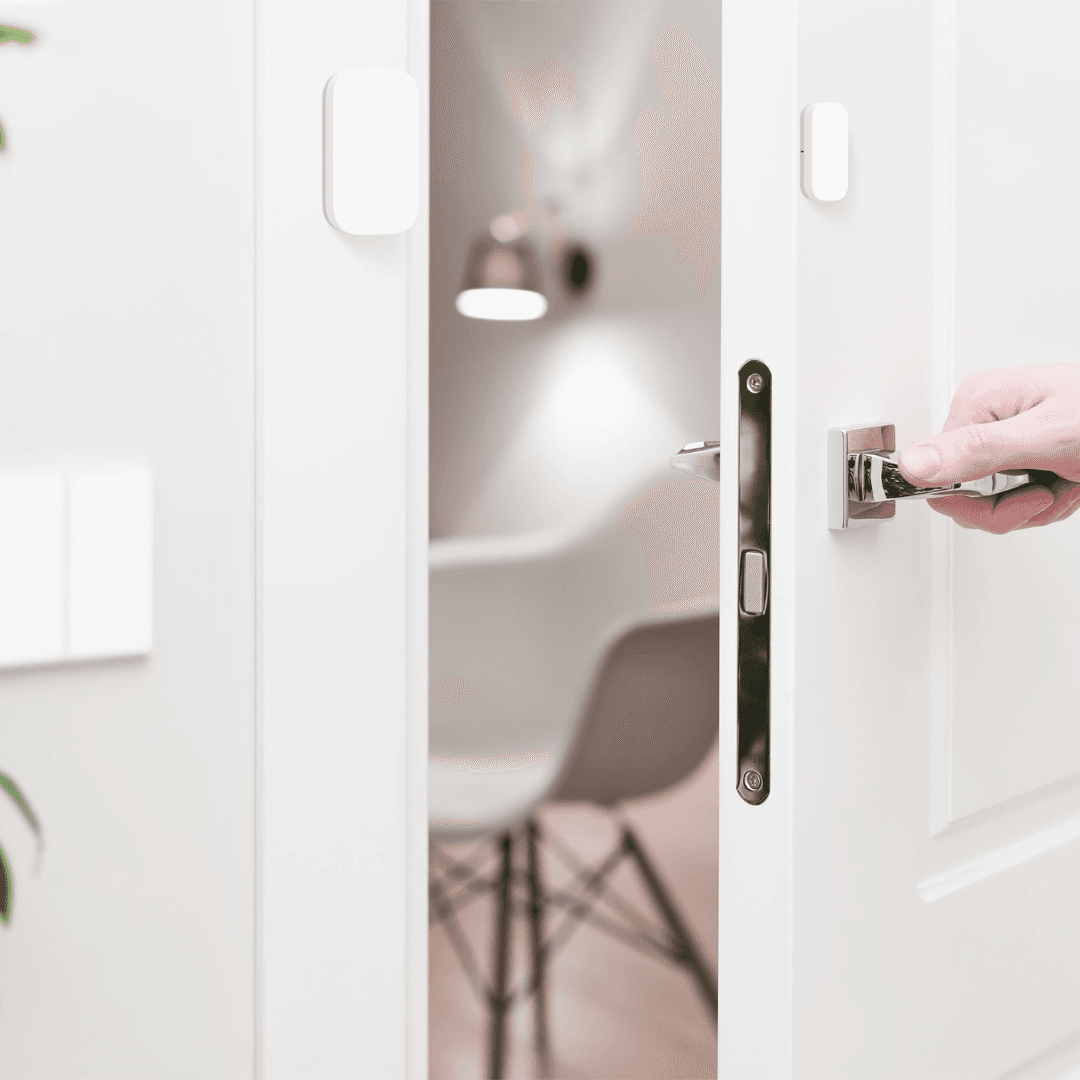

- Attach the main sensor unit to the door frame using the included adhesive.
- Place the magnet unit on the moving part of the door or window, so it aligns with the sensor.
- Add the sensor to the Aqara hub through the Aqara Home app and begin creating automation.
FAQs
What is Aqara Door & Window Sensor T1?
Aqara Door & Window Sensor T1 is a Zigbee smart sensor that detects whether doors or windows are open or closed.
Does Aqara Door & Window Sensor T1 require a hub?
Yes. It requires an Aqara hub or compatible Zigbee hub to connect to smart home systems.
How does Aqara Door & Window Sensor T1 detect door status?
It detects changes in distance between the sensor and magnet when a door or window opens.
Where can Aqara Door & Window Sensor T1 be installed?
It can be installed on doors, windows, cabinets, or drawers for smart home monitoring.
Why Buy Aqara Door & Window Sensor T1?
- Reliable Zigbee smart contact sensor.
- Real-time door and window status monitoring.
- Supports smart home automation and alerts.
- Compact design with simple adhesive installation.
